Plastic injection mold manufacturer--A Guide to Frequently Asked Questions
1.What is a plastic injection mold manufacturer?
2.What is plastic injection molding?
3.What is a plastic injection mold?
4.What products can plastic injection mold manufacturers produce?
5.What equipment do plastic injection mold manufacturers need to manufacture products?
6.What is the basic process of manufacturing plastic injection mold manufacturers?
7.What services do plastic injection mold manufacturers provide?
8.What different types of molds can plastic injection mold manufacturers produce?
9.What are the main application areas of plastic injection mold manufacturers?
10.What steel materials do plastic injection mold manufacturers need to manufacture molds?
11.What changes have experienced in the development process of plastic injection mold manufacturers?
12.What changes have plastic injection mold manufacturers gone through in their journey in China?
13.What changes have plastic injection mold manufacturers gone through in their journey in Europe?
14.What are the cost factors for plastic injection mold manufacturers?
15.How to choose a suitable plastic injection mold manufacturer?
16.What are the key technologies used by plastic injection mold manufacturers for injection molding?
17.What are the steps involved in the design process of plastic injection mold manufacturers?
18.How does the material selection of plastic injection mold manufacturers affect the quality of finished products?
19.What are the environmental requirements and standards for plastic injection mold manufacturers?
20.How do plastic injection mold manufacturers conduct quality control?
21.What steps are required for the maintenance and upkeep of plastic injection mold manufacturers?
22.What are the future development trends of plastic injection mold manufacturers?
23.What is the difference between plastic injection mold manufacturers and 3D printing manufacturers?
24.How do plastic injection mold manufacturers ensure the accuracy and consistency of their products?
25.Is there a safety risk in the manufacturing process of plastic injection molds?
26.How do plastic injection mold manufacturers respond to rising material prices?
27.Do plastic injection mold manufacturers have international standards for mold manufacturing?
28.Do plastic injection mold manufacturers require professional certification?
29.Does the mold design of plastic injection mold manufacturers involve CAD technology?
30.What information do plastic injection mold manufacturers need to provide for customized molds?
31.What is the relationship between the production capacity and production speed of plastic injection mold manufacturers?
32.How can plastic injection mold manufacturers extend the lifespan of their molds?
33.How do injection mold manufacturers handle waste and recycle?
34.Is the design of plastic injection mold manufacturers protected by intellectual property rights?
35.Are plastic injection mold manufacturers affected by international trade regulations?
36.Can plastic injection mold manufacturers conduct mass production?
37.Can plastic injection mold manufacturers handle various plastic materials in their manufacturing?
38.How does the cost of plastic injection mold manufacturers affect the price of the final product?
39.What is the role of plastic injection mold manufacturers in their manufacturing and global supply chain?
40.How do plastic injection mold manufacturers control product delivery?
41.What design software do plastic injection mold manufacturers need?
42.What experience and professional knowledge do top plastic injection mold manufacturers need to possess
43.What technological innovation and research and development capabilities do plastic injection mold manufacturers have
44.Multi station and multi chamber mold design for plastic injection mold manufacturers
45.What are the capabilities of plastic injection mold manufacturers to manufacture large and small molds?
46.What are the advanced mold cooling technologies of plastic injection mold manufacturers?
47.Mold Heat Flow Analysis of Plastic Injection Mold Manufacturers
48.What is the pricing strategy of plastic injection mold manufacturers for competitiveness?
49.What do plastic injection mold manufacturers have for traceable materials and components?
50.Plastic injection mold manufacturers' procurement and management of raw materials
51.Preventive maintenance plan for equipment by plastic injection mold manufacturers
52.What strict mold inspections and tests do plastic injection mold manufacturers have
53.How plastic injection mold manufacturers provide customer support and related training
54.How can plastic injection mold manufacturers achieve rapid equipment troubleshooting and repair?
55.How do plastic injection mold manufacturers position their customers and global markets?

1.What is a plastic injection mold manufacturer?

A plastic injection mold manufacturer is a company that specializes in designing, creating, and producing molds used in the plastic injection molding process. They work with clients in various industries to develop custom molds that can produce high-quality plastic parts in large quantities. These manufacturers use advanced technology and techniques to ensure the precision and accuracy of the molds, resulting in consistent and efficient production of plastic parts. They also provide services such as mold maintenance and repair, as well as assisting with product design and development.

2.What is plastic injection molding?

Injection molding is a forming process using molds. Materials such as synthetic resins (plastics) are heated, melted, and then sent to the mold, cooled to form the designed shape. Due to the resemblance to injecting fluids using a syringe, this process is called injection molding.

3.What is a plastic injection mold?

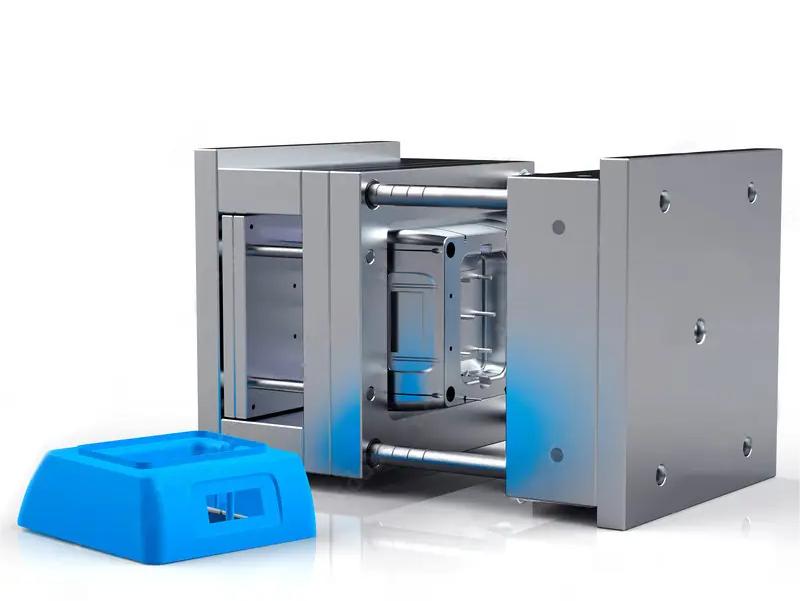

A plastic injection mold is a tool used in the manufacturing process of plastic products through the injection molding technique. It is typically made of steel or aluminum and is designed with a cavity in the shape of the desired product. Molten plastic is then injected into the mold at high pressure, filling the cavity and taking the shape of the mold.

Once the plastic has cooled and solidified, the mold is opened and the finished product is ejected. Plastic injection molds are commonly used in industries such as automotive, medical, consumer goods, and packaging. They allow for mass production of identical plastic parts with high precision and efficiency.


4.What products can plastic injection mold manufacturers produce?

Because an injection molding machine can be used to fill almost any mold design you can think of, there is no truly comprehensive list of injection molding products with the types of products or parts made with injection molds. However, here are a few common and widely used products that, in most cases, come about thanks to injection molding:

Electronic housings.

Most electronic devices have some plastic housing that forms both the main exterior body of the product and protects the interior components and wiring from damage. Examples include TVs, computers, remote controls, phones, printers, and more. Injection molds are used to manufacture custom plastic housings or enclosures for all these devices.

Industrial parts.

Many industrial parts and components are crafted using plastic injection molds. Industries such as oil and gas may rely on durable plastic parts as a reliable and low-cost option for replacing more expensive metal parts.

Consumer goods.

So many plastic consumer goods start in injection molds. From toothbrushes to cosmetic bottles to packaging, many of the things you use every day likely originated thanks to injection molding.

Sporting goods.

Injection molding is extremely common in sporting goods and parts, including helmets, padding, and other protective gear.

Health care supplies.

Many healthcare products are plastic and disposable, and most of those are made through a molding process. Examples include plastic syringes, containers (such as beakers or test tubes), surgical equipment, and even implants.

Construction materials.

We often think of construction materials as wood, steel or concrete, but plastic often plays a key role in everything from flooring panels to deck fasteners to vents to housings for fixtures.


5.What equipment do plastic injection mold manufacturers need to manufacture products?

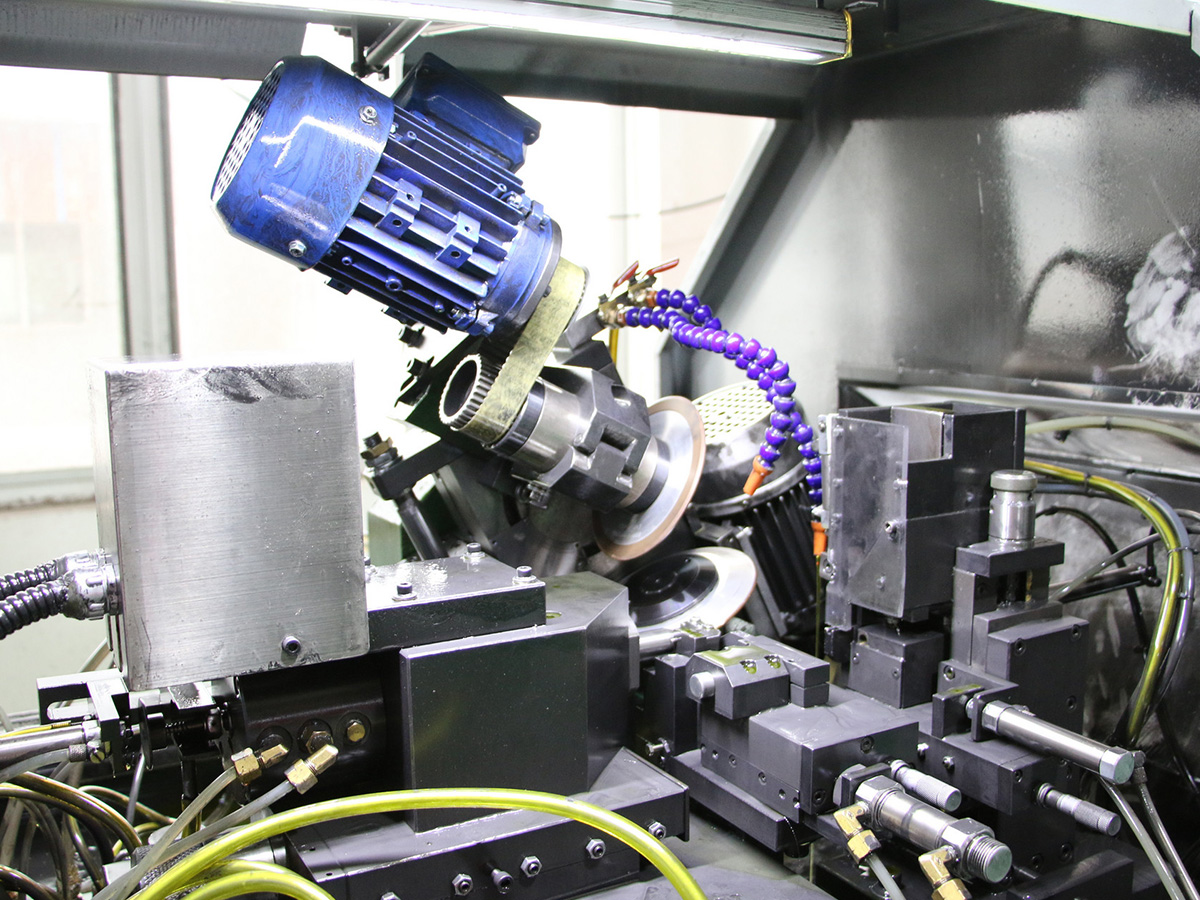

There are many types of machines that can be used for tooling, such as Grinding machines, milling machines, EDM wirecuts, EDM burns, CNC machines, etc.

6.What is the basic process of manufacturing plastic injection mold manufacturers?

The mold manufacturing process for injection molding is referred to as mold tooling. Many molding shops offer mold tooling and design as a service on top of full-production injection molding. The majority of these molds are made of steel, but they can also be manufactured from aluminum.

Mold tooling can be an intricate challenge as each mold is made up of many different parts. In this article, we will explain the mold manufacturing process and the exacting details needed to complete the perfect mold.

Note: The molds/injection molding process mentioned in this article will reference book molds on a vertical injection molding machine.

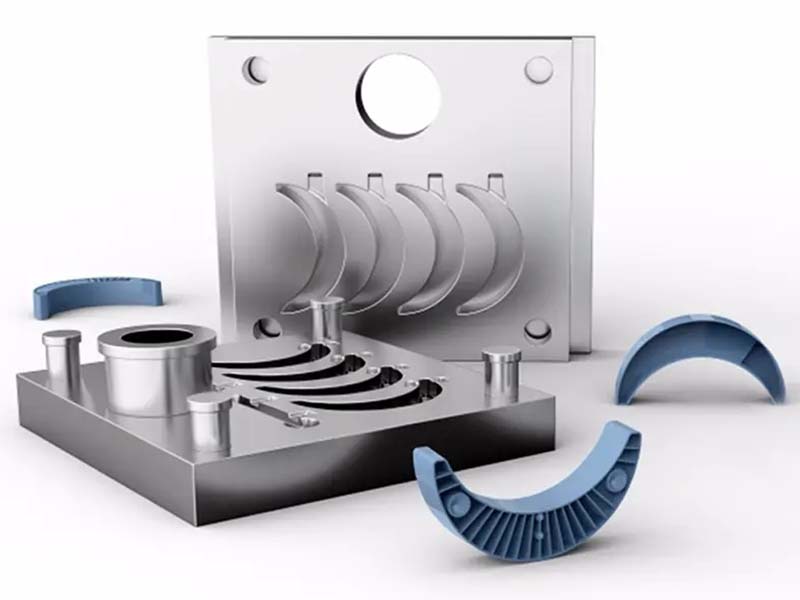

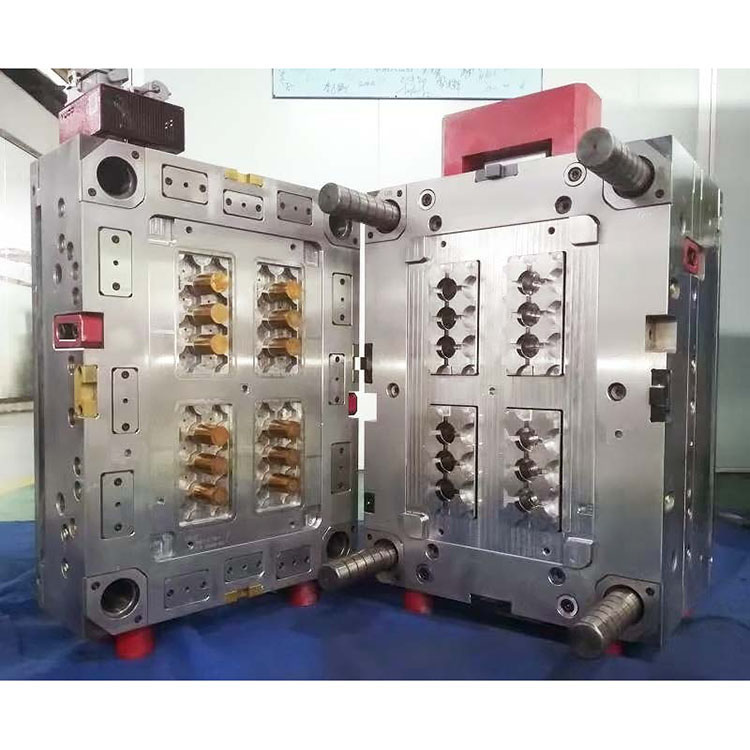

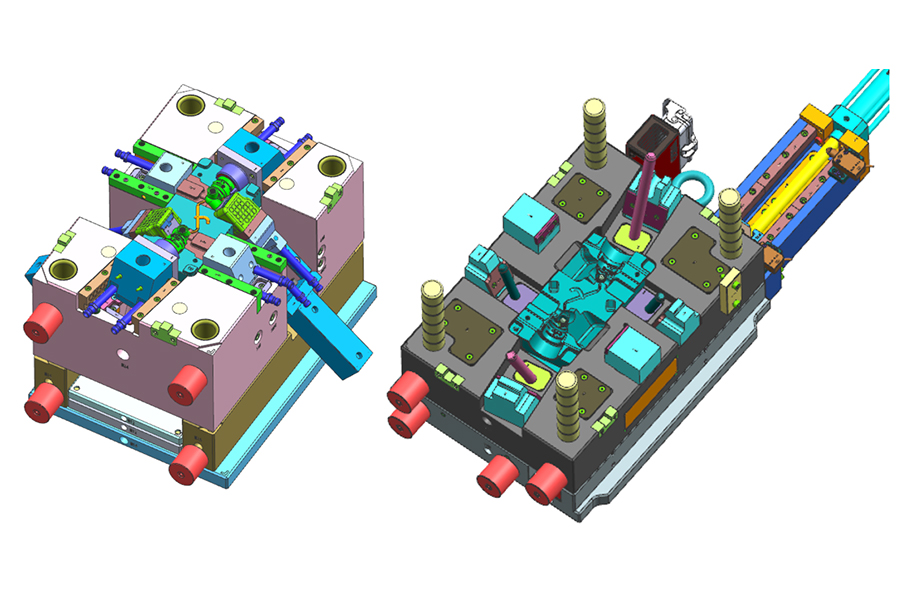

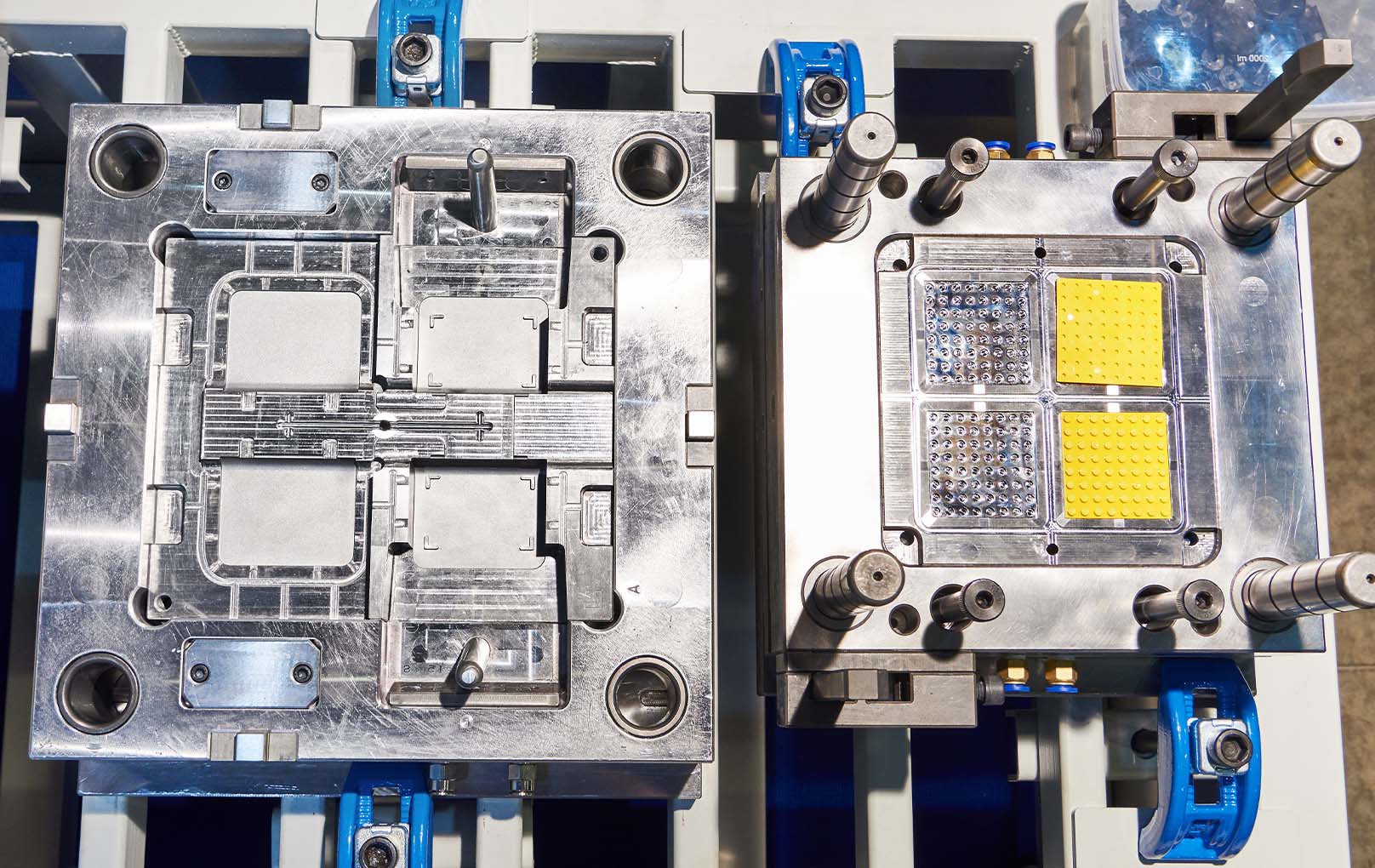

Structure of the Mold

Mold Base: A mold base is made up of two or more metal plates. These are called clamp plates and hold all of the internal aspects of the mold in between them. The bottom clamp plate rests on the insert molding machine table and contains support pillars for the ejector plate. The top plate is what the machine’s nozzle will press down on to receive the plastic resin.

Ejector Plate: The ejector plate is a moving part that assists in lifting the molded product out of the cavity. The plate itself has pins connected to it that fit through the rest of the mold and gently push the part up when it is finished. The plate keeps the pins together so they lift all at the same time. The ejector plate gets pushed up by the press knockouts attached to the machine.

Ejector Retainer Plate: This plate is a relatively thin sheet of metal that fits over the ejector plate. The retainer has holes for each injector pin and acts as a support for them.

“B” Plate: The “B” plate supports the mold cavity/core in place and is what the top half (“A” plate) of the mold closes on. The “B” plate is the final piece to the “B” half of the mold, which is sometimes referred to as the “live half” as it contains the ejector system

(everything mentioned above).

“A” Plate: The “A” plate, along with the “A” half does not contain any moving sections. This is the top section of the mold that closes on top of the “B” half and receives the plastic resin from the machine.

Mold Cavity: The cavity is filled with the plastic resin that forms the final exterior shape of the part. The cavity can be placed in the “B” plate only, but most commonly is found in both the “B” and “A” plate.

For insert molding, the “B” cavity is typically the side where the inserts will be placed to be over-molded.

Mold Core: The mold core is what forms the interior of the final part. Similar to the cavity, the core can be found on either plate.

Sometimes the complexity of a part (ex: medical injection molding products) requires a loose core insert. Inserts are removed from the mold at the end of each cycle and the part is then taken off the insert.

Note: To help differentiate between the two, the cavity is always being filled with the resin, while the resin forms around the core.

7.What services do plastic injection mold manufacturers provide?

We provide Custom injection molding services, such as 3D prototypes, Engineering design, mold making, injection molding, etc.


8.What different types of molds can plastic injection mold manufacturers produce?

Injection molding is a manufacturing process used for the mass production of identical plastic parts. It’s a method of plastic injection where molten plastic is inserted into a mold to produce a part in the shape of the mold cavity, creating a physical representation of modeled plastic parts. Plastic injection molding has been around since the late 19th century and continues to be popular. If you look around, injection molded parts are everywhere, from the keys on your keyboard to the dashboard of your car to your X-Wing LEGO set.

The plastic injection molding process is commonly used when large amounts of parts are needed quickly, when piece prices need to remain low, and when all parts need to be identical in size and other metrics. The main benefit of this process is its cost-effectiveness; sometimes it costs just cents per part for parts at scale. “At scale” typically refers to volumes ranging from thousands to hundreds of thousands of parts. However, it also is one of the most repeatable manufacturing processes, and it also has the highest variety of materials, colors, and cosmetics when compared to CNC machining or even 3D printing.

9.What are the main application areas of plastic injection mold manufacturers?

Automotive injection molding is a manufacturing process that uses a high-pressure plastic injection to form a variety of automotive parts, such as body panels, interior components, and engine parts. It is one of the most commonly used processes for mass-producing plastic parts because it can produce large quantities quickly and cost-effectively.

Electronic housings.

Most electronic devices have some plastic housing that forms both the main exterior body of the product and protects the interior components and wiring from damage. Examples include TVs, computers, remote controls, phones, printers, and more. Injection molds are used to manufacture custom plastic housings or enclosures for all these devices.

Many healthcare products are plastic and disposable, and most of those are made through a molding process. Examples include plastic syringes, containers (such as beakers or test tubes), surgical equipment, and even implants.

So many plastic consumer goods start in injection molds. From toothbrushes to cosmetic bottles to packaging, many of the things you use every day likely originated thanks to injection molding. Sporting goods. Injection molding is extremely common in sporting goods and parts, including helmets, padding, and other protective gear.

We often think of construction materials as wood, steel or concrete, but plastic often plays a key role in everything from flooring panels to deck fasteners to vents to housings for fixtures. Injection molding is an integral part of creating parts used in aerospace engineering. Aerospace parts created through injection molding include turbine housings, turbine blades and pin maps used to mold carbon or glass fibers into sheet applications. Designers work closely with engineers to ensure the parts meet performance criteria.

The food and beverage industry is heavily regulated to ensure containers, industrial process components, and other parts comply with safety standards. As such, manufacturers use food-grade plastic materials for part design and construction, including plastic injection molding. Plastic injection processes can create complex, identical goods with a low risk of error. This makes plastic an increasingly popular alternative to metal, with specific advantages regarding food and beverage safety.

10.What steel materials do plastic injection mold manufacturers need to manufacture molds?


P20 Mold Steel

P20 is a versatile, pre-hardened mold steel that can be heat treated to higher hardness levels. ...

H13 Mold Steel

H13 is a versatile chromium hot work steel that is pre-hardened. ...

S7 Mold Steel

S7 is an air hardening, high-carbon, high-chromium steel. ...

420 Stainless Steel

420 stainless steel offers good corrosion resistance for molds exposed to moisture. ...

1018 Mild Steel ...


11.What changes have experienced in the development process of plastic injection mold manufacturers?

When you think of the great inventions of modern history you probably think of automobiles, airplanes, computers, and other revolutionary innovations. While these developments are vital, have you ever considered the multifaceted manufacturing processes, materials, and design applications their production entails?

Many people are unaware of today’s invaluable manufacturing methods and tools, but without them, industrial innovations and new-age technological devices would not exist. Plastic injection molding is a perfect example.

Plastic has emerged as one of the most critical mediums in modern manufacturing as it offers affordable, high-quality production runs and durable, corrosion-resistant parts and products. Plastic injection molding technology has only enhanced the design and application capabilities of plastic materials.

The modern world would look drastically different without plastic injection molding. Let’s dig a bit deeper into it’s history.

The Start of Plastic Injection Molding Plastic injection molding was invented in the late 19th century, with the first molding machine patented in 1872 by two brothers, John and Isaiah Hyatt. While the device was simple by today’s standards, it quickly led to the growth of a nascent plastic manufacturing industry, where combs, buttons, and other simple articles were molded in plastic.

In 1903 two German scientists, Arthur Eichengrun and Theodore Becker, created soluble forms of cellulose acetate; this was significantly less flammable than previous alternatives. While the 1930’s were a dark time for many people, for the plastics manufacturing industry it was a decade of innovation. Many of the most popular thermoplastics, such as polyolefins, polystyrene, and polyvinyl chloride (PVC) were invented during this time.

World War Two and the Brave New

World World War Two reshaped human history. The Second Great War popularized airplanes, led to dramatic advancements in automotive technology, and enhanced the United States war manufacturing economy that would later power the first stage of the post-war industrial revolution. Regarding plastics, this period also elicited a high demand for inexpensive, mass-produced materials.

This demand following World War II was in part a result material shortages. For example, rubber production was disrupted by the war across Asia and attacks on shipping lanes. Tanks and other war applications created a huge demand for metal. Plastics stepped in to fill the gap, providing an affordable substitute. As plastics gradually popularized, so too did plastic injection molding. It’s effectiveness to this era was primarily attributed to efficient, affordable, large-scale manufacturing.

Throughout the post-war period plastics remained popular. As business leaders recognized the tremendous cost benefits over rivaling materials, global supply chains were reevaluated, and plastics became firmly entrenched in the mid-20th century’s economy and manufacturing processes.

James Watson Hendry and the Modern Plastic Injection Molding Industry

By 1946, American inventor James Watson Hendry built the world’s first extrusion screw injection machine. Using a rotating screw, Hendry was able to better control the injection process itself. This dramatically increased the quality of the products produced.

Hendry wasn’t done after creating the extrusion screw injection machine. Far from it. Hendry went on to develop the first gas-assisted injection molding process, a pivotal innovation that allowed for the creation of long, complex, hollow products. With materials providing increased strength and reduced weight, plastic production had overtaken steel production by the 1970s. By 1990 aluminum molds had become a manufacturing trend; a faster, cheaper production alternative to steel molds.

Hendry is one of the most important names in manufacturing history. Without his inventions, plastic injection molding would not be as advanced as it is today.

The Current State of Plastic Injection Molding Today, the opportunities provided by plastic injection molding are implemented by essentially every manufacturing sector; electronics, automotive, home appliances, housewares, you name it. Plastic Injection Molding is an affordable and effective method of producing high-quality parts and products.

The technology used today is quite similar to the technologies used in the past. However, computers have made the whole design and manufacturing process easier. The results are also more precise, and now plastic parts are often the preferred choice for advanced technological and scientific applications.

Conclusion: The Future of Plastics Is Here

New Berlin Plastics is proud to have been a part of the history of plastic injection molding. Founded in 1975, New Berlin Plastics has built an experienced team that has been able to produce some of the highest-quality plastic products available for a wide variety of industries.

12.What changes have plastic injection mold manufacturers gone through in their journey in China?

Injection molding machine plays a crucial role in plastics processing machinery, constituting 40% to 50% of the total output value of plastics processing machinery in China. In 2019, injection molding machines made up 45.4% of China’s plastics machinery exports; and it seized a 38.1% share in China’s imports of the same kind.

China’s output of injection molding machine would drop to 100,400 units in 2019 due to the depressed markets like automobile and 3C, and the figure will continue the bearish trend in the wake of the COVID-19 pandemic. As expected, China’s output of injection molding machines will recover with the demand growth from downstream markets and the motivation of replacing steel, nonferrous metals, cement and timber with plastics as well as the lightweight momentum.

Of the Chinese injection molding machine producers including Haitian International Holdings Limited, The Chen Hsong Group, Guangdong Yizumi Precision Machinery, L.K. Technology Holding Limited, Borch Machinery, Tederic Machinery, etc., Haitian International Holding Limited is the largest one with its market share in 2019 reaching 34.1%. China National Chemical China (ChemChina) acquired the Germany-based Krauss Maffei and incorporated it into Qingdao Tianhua Institute Of Chemistry Engineering Co., Ltd which was later listed on Shanghai Stock Exchange and renamed on September 9, 2019 as Kraussmaffei Co., Ltd (now being the second largest producer of injection molding machines in China, seizing 20.4% market shares in 2019). Confronting the weak domestic demand and the depressed export, the Chinese manufacturers of injection molding machine strengthen their competitiveness through more efforts in the R&D and innovation of products as well as exploration of overseas markets. During 2018-2019, the leaders such as Haitian International Holdings Limited, The Chen Hsong Group, Guangdong Yizumi Precision Machinery, Borch Machinery and Tederic Machinery were pacing up their expansion abroad.

Injection molding machine is heading toward the ‘electrified, large-sized, intelligent, connected’ trend alongside an ever higher demanding on the precision, stability, energy saving and efficiency from downstream sectors like 3C, medical, airplane and high-speed railways.


13.What changes have plastic injection mold manufacturers gone through in their journey in Europe?

Molders contemplating expansion plans should take a closer look at Eastern Europe. This market has 150 million educated people, growing consumer spending power, and virtually no U.S. manufacturing presence.

A Flurry of Activity

The incentives for U.S. molders to consider Eastern Europe as a place to invest are numerous. The most appealing aspect is that many Eastern European countries are now attempting to join the European Community (EC).

Signs of Growth Abound

U.S. automotive molders are among the first who could find solid opportunities in the East. "We would love to see U.S. suppliers become active here," a Czech officer at Volkswagen-owned Skoda Auto AS (Mlada Boleslav, Czech Republic) told IMM. "We need the know-how for high-speed, high-quality parts molding to help us sustain our growth."

Growth is solid for Skoda and other car builders in Eastern Europe. In the first nine months of 2000 Skoda boosted sales growth by 7.4 percent. Other Eastern carmakers have made similar gains.

Several other industries have emerged with promising opportunities for growth, potentially ensuring profitable results for U.S. molders:

Appliances are a major growth market across the whole region. Strong growth for consumer and business electronics is anticipated in Poland, Hungary, the Czech Republic, Slovenia, and Croatia. Passenger car production growth in the Czech Republic, Poland, Romania, and soon Serbia will provide a fertile market for U.S. auto parts makers. Molders of large parts suitable for trucks, buses, and passenger rail cars will find opportunities in Bulgaria, Hungary, and the Czech Republics. All eastern European countries are clamoring for investment in the disposable medical device market.

Examples of Investment

Here is a quick list of some of the more notable plastics-related investments of the immediate past, just to give you a flavor for what is currently being done.

Electronics manufacturer and captive molder Key Tronic Corp. (Spokane, WA) has already set up operations in Eastern Europe and plans more. Sweden's Ericsson announced in October that it is moving a substantial part of its mobile phone manufacturing to Hungary. French companies such as C2P, Knauf, SISA, Technnodev. Tetras, Plastiques Faconnes du Dethunois, Jouet, and Berchet-operating as a group-have targeted injection molding in Hungary as a major opportunity for French

14.What are the cost factors for plastic injection mold manufacturers?

The injection molding cost is a common focus of plastic product manufacturers who use the process. It is an agglomeration of different factors and elements, and understanding such factors and elements plays a critical role in optimizing the cost of any project. As a result, this article breakdown everything you need to know about how much injection molding cost and how you can optimize it for your project.

Is Injection Molding Expensive?

The answer is not straightforward, but the injection molding process is cost-effective if you look at the mass production of plastic parts. However, the initial setup cost can be high due to the high machine prices.In that instance, plastic injection molding cost is highly expensive. Nevertheless, the overall manufacturing cost reduces as you produce parts in mass. As a result, many consider plastic injection molding one of the most cost-effective for the mass production of plastic parts.

In short, the higher the number of parts produces, the lower the price per part.

Key Factors that Affect Injection Molding Cost

Many factors directly affect how much injection molding costs. Below are key elements you need to take note of.

- Part Costs

Part costs depend on the size, design, and volume of parts. As a result, knowing how these factors can affect plastic injection molding costs can greatly optimize your project’s cost.

– Part Size

Making a large part will mean two things. One is that it will require more injection molding material, increasing the cost of injection molded parts. Aside from that, a large part will require using the right injection molding machine and manufacturing the right mold size to hold such parts. The larger the injection molding machine and the more sophisticated the mold manufacturing process, the higher the injection molding cost.

– Part Complexity

Complex parts will require a mold of equal complexity made using a capable manufacturing process such as CNC machining, EDM machining, or 3D printing. Aside from that, complex parts often require more material to fill the mold, which can further drive up the material costs of injection molding. The production time can also increase for complex parts, as they may require longer cycle times or additional steps in the production process. This can lead to longer production times and ultimately higher costs.

– Part Design for Manufacturability

Businesses that provide manufacturing services with design for manufacturability (DFM) analysis ensure the CAD design is optimized for manufacturing and assembly. Design for manufacturability is critical in product development as it helps reduce errors and part costs and improves productivity and efficiency. Products whose designs are unsuitable are more likely to incur additional costs due to elongated production processes or material wastage. ·

--Tooling Costs

The tooling cost incurred during injection molding depends on the machining process used in making the mold, the material used, mold complexity, and mold cavity size.

– Choice of the Mold Manufacturing Process

Injection mold manufacturing uses various methods, including CNC, electric discharge, and 3D printing.

Each method is unique with the following properties:

3D printing

3D printing is suitable for making molds with complex designs or less durable injection molds at a low cost. Furthermore, 3D printing allows mold designers to test and change the design at any point in time before mass production begins.

Stereolithography (SLA) is the most common 3D printing process for making such molds. The cost depends on the material. With plastic materials, the mold can cost about $100. With aluminum and low details, the mold can cost about $2000 to $5000. For a mold with higher details, the price can be as high as $100,000.

CNC Machining

CNC machining is a highly accurate molding manufacturing process suitable for steel and aluminum materials. The machining process is subtractive and suitable for making injection molds with intricate and complex designs. Due to requirements such as large space and high machine costs, businesses often outsource making a mold using CNC machining to third-party service providers.

EDM Machining

EDM machining is the most suitable for creating a mold from hard and conductive materials. Like CNC machining, businesses often make such molds by outsourcing to third-party service providers.

Of the three methods, CNC machining is the costliest (costing about five to ten times the cost of 3D printing).

– Choice of Mold Material

Injection molds are made using steel and aluminum, each with unique properties. For example, aluminum molds are lightweight, rust-resistant, heat-resistant, and highly formable, while steel is more suitable for high-volume production due to its immense durability. As a result of its properties, steel molds are more expensive, causing an increase in the cost of injection molding.

– Mold Complexity

Mold design for complex parts will require a compatible manufacturing process and higher technical expertise. Therefore, such molds have a higher cost than simpler parts. Although most will require aluminum materials due to the material’s formability, technical expertise comes into play. Moreover, if the manufacturer prefers a steel mold which is already expensive, damage to the mold can increase the cost of production as steel molds are difficult to repair.

– Mold Cavity Size

An increase in the mold cavity will increase the press time, reducing the production speed and increasing the cost of injection molding. Aside from the cavity size, the number of the cavity also plays a huge role in the plastic injection mold cost.

Single cavity molds have one cavity, making it easier to produce. However, the cycle time increases, reducing the production rate and increasing part cost. On the other hand, multi-cavity molds (have many cavities of the same design) and family cavity molds (have many cavities of different designs) increase the cost of mold manufacturing but increase the production rate and reduce the cost per part.

· Materials Costs

Injection molding raw materials come in different properties, applications, availability, and price. Generally, thermoplastics used in the process can cost between $1 to $5 per kilogram. However, other factors also play more role in the cost. For example, the more versatile the material, the lower the price visible in the case of polypropylene and polyethylene. Their price pales compared to thermoplastics such as PEEK, known for its durability, chemical, heat, and wear resistance.

Note: the material cost incurred during the plastic injection molding process also depends on the amount of material you use to manufacture the product.

· Production Volume

The production volume also plays a huge role in the injection molding cost. It affects the amount of raw injection molding material required, the sophistication of the injection molding machine, and the injection mold’s strength/durability/other mechanical properties.

The volume of production is divided into three major categories:

– Low-Volume Production

This will require a simple mold made from less costly aluminum or a 3D-printed mold. Furthermore, it will require low raw materials and less sophisticated machines. Overall, the injection molding cost is low. However, there is a higher cost per unit part.

– Medium and High-Volume Production

This will require a strong injection mold made from steel due to its long life expectancy, many materials, and, if possible, a sophisticated machine. This should increase the injection molding cost. However, the high cost will be distributed among the parts, reducing the cost per part manufactured.

It is important to note that there is a higher cost distribution per part in high-volume production than in medium-volume production. As a result, they have a lower cost per part manufactured.


15.How to choose a suitable plastic injection mold manufacturer?

When it comes to injection molding, choosing the right manufacturer is crucial for the success of your project. Whether you're a startup or an established company, finding a reliable and experienced injection molding manufacturer is essential.

I. Understanding Your Requirements

Before beginning your search for an injection molding manufacturer, it's important to have a clear understanding of your project requirements. Consider factors such as the type and complexity of the parts you need to produce, the desired quantity, quality standards, budget constraints, and any specific industry regulations. By having a comprehensive understanding of your needs, you can better evaluate potential manufacturers.

II. Assessing Manufacturing Capabilities ACE

Injection Moulding Company is renowned for its advanced manufacturing capabilities. When evaluating a manufacturer, it's crucial to assess their technical expertise and the range of services they offer. Look for companies that have state-of-the-art machinery, a diverse range of molding processes, and the ability to handle various materials. ACE Injection Moulding Company excels in this aspect, offering a wide range of injection molding services, including precision molding, multi-shot molding, and insert molding.

III. Quality Assurance and Certifications

Quality is of utmost importance in injection molding. Choosing a manufacturer with a strong quality assurance program ensures that your parts meet the required specifications consistently. Look for certifications such as ISO 9001, which indicate a commitment to quality management systems. ACE Injection Moulding Company is known for its stringent quality control processes and holds various certifications, ensuring the highest standards are met throughout the manufacturing process.

IV. Experience and Expertise

Experience and expertise play a significant role in the success of your injection molding project. A manufacturer with a solid track record demonstrates their ability to deliver high-quality parts consistently. ACE Injection Moulding Company has been in the industry for several years, accumulating extensive knowledge and expertise. Their team of skilled engineers and technicians is well-equipped to handle complex projects, offering valuable insights and innovative solutions.

V. Customization and Design Support

Collaboration with the manufacturer during the design and development stages is crucial for a successful project. Choose a manufacturer that provides design support, assisting you in optimizing part design for manufacturability and cost-effectiveness. ACE Injection Moulding Company offers comprehensive design support services, employing advanced software and prototyping techniques to bring your ideas to life efficiently.

VI. Timely Delivery and Communication

Efficient communication and timely delivery are key factors to consider when selecting an injection molding manufacturer. Ensure that the manufacturer has a reliable supply chain and efficient production processes to meet your project deadlines. ACE Injection Moulding Company is known for its excellent communication channels and commitment to on-time delivery, ensuring a smooth and streamlined manufacturing process.

16.What are the key technologies used by plastic injection mold manufacturers for injection molding?

Plastic injection molding's advantages include uniformity, decreased cost, and quick high-volume production. Additionally, injection molded parts feature excellent stability and their scrap materials can be recycled, helping to eliminate waste.

Providing Uniformity: forming all parts from the same molds ensures parts keep the same dimensions with little effort (and therefore cost). Part tolerances can reach +/- .125 mm (.005 in) comparable to CNC machined or 3D printed parts, and are commonly found at +/- .500 mm (.020 in).

Making Virtually Identical Parts: since all parts produced come from the same few molds, even pieces with detailed features or complex geometries remain consistent. Decreasing Cost: due to the nature of injection molding, the more parts you produce, the less you pay per piece. Manufacturing this way involves little in the way of labor or time expenses once the initial equipment and materials are set up.

Injection molding is the cheapest process at scale for plastics because it can produce hundreds or thousands of parts per day. Increasing Speed of Production: other manufacturing methods including CNC machining and 3D printing require more work around each part, while injection molding simply requires the injection of material and the cooling time to create a part (some part types do require secondary processes depending on their applications, however).

Production can also be increased by including mold cavitation (the number of hollow forms inside each mold). It’s important to note, however, that this only applies once the tooling has already been made. Tooling creation adds time to the lead time for new molded parts. Benefitting Compatibility: some forms of injection molding (such as overmolding and insert molding) enable the use of multiple materials to create a single part.

Injection molding itself can utilize over 18,000 thermoplastics, thermosets, and elastomers by some estimates. This means that it’s easy to create parts that are compatible with the components they will interact with. Ability to Make Complex Parts with Less Expense: since it involves filling plastic into a mold, complex and intricate parts can be made by this method in large batches without a lot of labor or time.

It’s just important to ensure the design follows injection mold best practices, which we cover in more detail further on. Material Flexibility: since injection molding can utilize so many thousands of types of plastic and additives, it’s easier to find plastic with the properties you need. Stability: Injection molded parts are isotropic, which means they form a solid part.

This makes them stronger and more reliable than some 3D printed parts, so they will last longer before needing replacement. Material recyclability: injection molding can reuse scrap material, reducing both waste and the need to purchase more material. Low cost of labor: since injection molding is mostly run by machines, labor costs are limited to supervision, quality checks, and other similar tasks.


17.What are the steps involved in the design process of plastic injection mold manufacturers?

The 5-Step Process of Making an Injection Mold

Step 1. Design and Prototyping Designing for Injection Molding is the first step on the way. ...

Step 2. Choosing the Right Material Material pick is the most important thing. ...

Step 3. Mold Creation After the shape is set and the material is picked, the mold is made. ...

Step 4. Testing the Mold ...

Step 5. Mass Production ..

18.How does the material selection of plastic injection mold manufacturers affect the quality of finished products?

Injection molding mold manufacturing can be roughly divided into the following steps:

I. Process analysis of injection molding mold plastic products

Before designing the mold, the designer should fully analyze and study whether the plastic product conforms to the principle of injection molding, and needs to negotiate carefully with the product designer to reach a consensus. This includes necessary discussions on the geometric shape, dimensional accuracy and appearance requirements of the product, and try to avoid unnecessary complexity in the manufacture of injection molding molds.

II. Injection molding mold structure design

A set of high-quality molds requires not only good processing equipment and skilled mold manufacturing workers, but also a very important factor is to have a good injection molding mold design, especially for complex molds, the quality of the mold design accounts for the quality of the mold. more than 80%. An excellent mold design is: on the premise of meeting the requirements of customers, the processing cost is low, the processing difficulty is small, and the processing time is short.

To do this, it is necessary not only to fully digest the requirements of the guests, but also to have an understanding of the injection molding machine, mold structure, processing technology and the processing capacity of the mold factory itself.

Therefore, to improve the level of mold design, the following points should be made:

1. Understand every detail in the design of each mold, and understand the purpose of each part in the mold.

2. Refer to the previous similar designs when designing, and understand the situation during its injection molding mold processing and product production, and learn from the experience and lessons.

3. Learn more about the working process of the injection molding machine to deepen the relationship between the mold and the injection molding machine.

4. Go to the factory to understand the process of plastic injection molding products, and understand the characteristics and limitations of each type of processing.

5. Understand the test results and mold modification of the injection molding mold designed by yourself, and learn from it.

6. Try to use the more successful mold structure in the design.

7. Learn more about the influence of mold entering water on products.

8. Study some special mold structures and understand the latest mold technology.

III. Determine injection molding mold material and select standard parts

In the selection of mold materials, in addition to considering the accuracy and quality of the product, it is also necessary to give the correct choice in combination with the actual ability of the mold factory's processing and heat treatment. In addition, in order to shorten the manufacturing cycle, the existing standard parts are used as much as possible.

IV. Parts processing and injection molding mold assembly

In addition to giving the best structure and reasonable tolerance in the design, the precision of the mold is very important for the machining of parts and the assembly of the mold. Therefore, the selection of processing accuracy and processing method occupies an absolutely dominant position in the manufacture of injection molding mold.

V. Injection molding mold

A set of molds is only 70% to 80% of the entire manufacturing process from the start of design to the completion of assembly. For the error caused by the inconsistency between the predetermined shrinkage and the actual shrinkage, whether the demolding is successful or not, how is the cooling effect, especially the influence of the size, position and shape of the gate on the accuracy and appearance of the product, it must be tested by mold trial. Therefore, mold test is an indispensable step to check whether the injection molding mold is qualified and choose the best molding process.

19.What are the environmental requirements and standards for plastic injection mold manufacturers?

Injection molding faces two main environmental challenges - the efficiency of its process and the impact of its materials. Invented back in the late 1800s, the original production process wasn't made with environmental impact in mind. As a result, many manufacturers have faced criticism for their green credentials.

Specifically, the amount of energy used in the manufacturing process, the impact of creating virgin plastics from fossil fuels and the disposal of single-use products into landfill are the main sustainable challenges for plastic injection molding. As part of the manufacturing industry, injection molding businesses also contribute towards 20% of the world's carbon emissions thanks to hydraulic oil- and energy-guzzling machines which are being phased out and replaced with Injection molding isn't all bad for the environment. In comparison to other molding processes, it is more energy-efficient and produces less waste.

In fully optimized injection molding processes, only the amount of polymer required to fill the mold is used, meaning as little as possible is wasted. Modern electric injection molding machines are also more energy efficient than the original models, meaning they use less power and have less carbon impact.

The new Demag machines from Sumitomo, for example, show increased capacity and reduced energy consumption. A trial in the UK showed a 32% energy saving was gained without adjusting any of the process steps. Whereas it previously consumed 6.31KWh at an average equivalent cost of $0.096 p/h, the trials showed the new machine – the IntElect –saw consumption drop to 4.3KWh (note cost per unit is different in the US).

Added to this, when the process was slightly optimized and the cycle time was reduced by 1.10 seconds, the energy savings and test data stayed consistent. But, by raising the cycling rate, the component yield went up.

At Essentra Components, where these machines are being introduced globally, the potential for savings all-round are impressive. Global Programme Director Chris Butler noted that they would only need to potentially install, run and maintain 100 fewer injection molding machines if replacing hydraulic with a like-for-like all-electric precision machine in order to maintain current run volumes.

Many manufacturers are looking to improve the sustainability of their production process and plastic products by integrating new innovations and technologies into their manufacturing processes.

So, if you're looking for the answer to the question 'is injection molding environmentally friendly?' then you'll be pleased to know that manufacturers are working hard to make the process and products as sustainable as possible.

20.How do plastic injection mold manufacturers conduct quality control?

DFM (Design for Manufacturing) analysis

Injection molding is a specialized process that uses molten material, such as ABS, PP, POM, Nylon, Polycarbonate, Acrylic, etc. that is then placed into a mold to create the part. The mold is filled under certain pressure and then cooled so it can solidify. It will then be removed from the mold. The process seems very simple, but many issues like gate mark, silver mark, sink mark, short shot, burrs will come out during the molding. Professional DFM analysis can point out most of these issue in advance, to give customers some suggestions to optimize the part design, so as to improve the molding feasibility.

Tooling engineer should work with the customers to understand their design goals.

How our manufacturing analysis can improve quality of injection-molded parts:

Identifies those uneven walls

Identifies features that need sufficient draft

Mold flow analysis to check the short shot and welded lines issues.

Select gate location

Select ejector pin location

Select qualified and certified tool steel material and plastic pellet suppliers

Tool steel is not just critical to the tool life, but also to the part’s surface, if using fake material, tool life will be shortened due to the bad strength, part’s surfaces will also be not good because of the insufficient hardness.

Processing tracking. Project engineer should trace the whole process from mold design to mold making and injection molding. Because he is the one who most familiar with the parts and molds, once there some problem during manufacturing, he can give the best suggestion to solve.

There are several different tests and control points positioned throughout the manufacturing process to make sure the finish product is up to the highest level of standards.

Sink Marks. Different problems can occur throughout the injection molding process, based on the tool temperature, the material used, the molding parameters and several other variables. Sink marks is the most common issue. They are small indentions or depressions that can happen in thicker areas of an injection molded part. The reasons are usually: insufficient cooling time, low pressure, etc.

Gas Marks and Burn Marks. They usually occur when the plastic is left in the molding cavity for too long and is scorched. Sometimes it also occurs when the hot compressed air inside of the mold is unable to escape out of the mold. Short Shots and burrs/flashes.

Short shots occurs when not enough plastic is used in the mold, or some very narrow gaps, or insufficient shooting pressure. Burrs/flashes occurs when parting surfaces weren’t fitted perfect, or too much shooting pressure.

Burn marks are labeled as a discoloration that appears on the visible surface of the injection molded part. They may be a dark, a black, or a dark red / rusty color on the surface when the material is overheated and burns against the surface of the injection mold.

First article inspection, processing inspection and final inspection must be executed, and all the inspection results need to be recorded. First article inspections are performed to verify part features prior to full production. Once full production begins, inspections of tooling are completed by our mold masters and molding operators. First samples and final parts should be kept in the sample cabinet for reference next time.

About the inspected issues, besides dimensions, surface finish and color, the assembly also need to be checked if it connects to other components.


21.What steps are required for the maintenance and upkeep of plastic injection mold manufacturers?

Injection molding is the process of injecting molten material into metal molds at high pressure. The finished part is automatically ejected after it has sufficiently cooled. The process is highly automated and can produce large product volumes, especially plastic parts. Regular preventative maintenance of injection molding tools is required to achieve these large volumes. Mold maintenance is critical to keeping tools ready for production. Poorly maintained molds may create parts that fail to meet specifications, thus causing extra downtime, wasting raw materials, and affecting the bottom line.

This article will describe some key items to include in an injection mold maintenance checklist.

1. Perform Basic Maintenance Checks Before and After Each Production Cycle.

2. Clean the Mold Core and Cavity.

3. Blow Out Dust, Dirt, and Water With Compressed Air

4. Check the Mold's Runners, Sprues, and Other Places

5. Examine the Mold's Connectors and Hardware

6. Before Storing the Mold, Make Sure It's Totally Dry

7. Make a Note of the Date and Scope of Your Mold Cleanup Efforts

22.What are the future development trends of plastic injection mold manufacturers?

The total U.S. industry market size for Industrial Mold Manufacturing: Industry statistics cover all companies in the United States, both public and private, ranging in size from small businesses to market leaders. In addition to revenue, the industry market analysis shows information on employees, companies, and average firm size.

Investors, banks, and business executives use growth rates and industry trends to understand the market outlook and opportunity. The industrial mold manufacturing industry is facing several key trends that are affecting its growth and the way it operates. These include the growing demand for customization, the need to adopt advanced technologies, and the increasing focus on sustainability.

Customization has become a major trend in the industry, as companies seek unique solutions for their manufacturing processes. This has led to the development of more complex molds and the need for greater design flexibility. To meet these demands, mold manufacturers are investing in advanced CAD/CAM technologies, which enable them to create highly customized designs quickly and efficiently.

Another key trend in the industry is the adoption of advanced manufacturing technologies such as 3D printing and robotics. These technologies are helping manufacturers to produce molds more quickly and accurately, and with fewer errors. They also enable manufacturers to reduce costs and improve quality, making them an increasingly popular choice for companies looking for advanced solutions.

Sustainability is also becoming a major focus in the industry, as manufacturers seek to reduce their carbon footprint and minimize waste. This trend is driving the development of new materials and production processes that are more environmentally friendly, as well as the adoption of circular economy principles that promote reuse and recycling of materials.

Overall, the industrial mold manufacturing industry is facing significant changes that are reshaping the way it operates. Mold manufacturers that can successfully navigate these trends are likely to thrive in this dynamic and rapidly evolving industry.

23.What is the difference between plastic injection mold manufacturers and 3D printing manufacturers?

The main differences between 3D printing vs Injection Molding are:

3D printing is more expensive, whereas injection molding is a cheaper variant for bigger produce.

3D printing is smaller, whereas injection molding machines are quieter and faster.

3D printing allows you to make changes at any stage of the production process, whereas with injection molding you can’t make changes during the producing process.

Injection molding is a way for a large number of parts to be made at one time. Basically, a tray with printed molds of the parts carved in is created, and liquid material such as polycarbonate, metal, nylon, or anything that works for the object’s finish is poured into the molds and cooled to create the part dozens or hundreds of times over. It’s typically used in mass manufacturing where a part has to be repeated with strict fidelity for a large number of finished items.

If you’ve ever used a hand tool, you’ve seen an example of something that was built using injection molding. The handle of your screwdriver is exactly like the handle of every other screwdriver of that same brand and model, with the same bumps and dips for grip in the same places and the same flare at the collar to keep your fingers safe while you’re working.

The company used injection molding to make sure all of those design quirks translated over; however many screwdrivers were sold to stores.

Repeatability:

The injection molding process is hands down the most efficient process to produce large numbers of the same thing. The plastic parts you create are going to be virtually identical no matter how many you produce or how many times you repeat the injection molding process. That’s a great advantage for anyone who needs branding consistency or even just reassurance that everything will fit together as planned over a long and continuous manufacturing process.

Finish:

The finish of products that have been injection molded is going to be smoother than those that have been 3D printing since injection molding does not build up the material in layers but instead creates one smooth outer layer all at once through its pouring method. If you have parts that would suffer from the small ridges of 3D printer layers grinding together while working as a whole, injection molding solves that problem. Of course, the higher quality your 3D printer and filament is the less of a chance of the layers being an issue, so that may not be of concern depending on your equipment.

Mass production:

Injection molding was invented for producing lots of clones of the same object, which is invaluable when you’re manufacturing on a large scale. And if you have the up-front costs, the price to make each object goes down exponentially once you start producing. If you’re looking for this kind of efficiency, injection molding will make your life easier.

Bigger parts than 3D printing:

Although injection molding has its limits for the size of each individual piece that can be created, this process can produce a much bigger piece than 3D printing technology. Because of the industrial scale of its tools, injection molding works on a bigger scale, which is a big advantage even if you still have to print separate parts to put together later. Bigger pieces mean fewer connections, fewer seams, and fewer weak points, which is a major plus for objects that will see heavy mechanical or manual use.


24.How do plastic injection mold manufacturers ensure the accuracy and consistency of their products?

A quality control system is a necessity for companies that use injection molding. When items don’t work, aren’t the right color, or don’t fit correctly, it can damage a company’s reputation.

It starts at the design phase and includes discussions about surface finishes affecting aesthetics and performance. The best way to ensure your injection molded product works is to partner with a manufacturer prioritizing precision, consistency, and durability.

Part Lines

The injection molding process is highly controlled and can ensure consistent results. Nevertheless, even with this high level of quality control, mistakes can sometimes occur. These errors may lead to products not being made according to specifications and can upset customers.

A standard error in injection molding is the creation of part lines. These unsightly seams can form when different product parts come together. While good design can hide these lines, poor production quality makes them appear more prominent and cheap.

Machinists must select the best location for the parting line during mold design to avoid this issue. The part’s geometry usually determines this and how it needs to be drafted for release. Simple techniques will have a parting line that exists on a flat plane, while more complex and curved designs will require a parting line to follow the contour of the product.

Insufficient Plastic

If your injection molded products don’t fit, are the wrong color, or have flaws in the design, you’ll upset customers and may even lose business. That’s why rigorous quality control is essential.

Discolored lines appear on the surface of finished molded parts and are most commonly caused by the plastic resin cooling at different rates as it flows through the mold. They can also result from uneven wall thickness or varying injection speed.

Flash is a thin flap of extra molding material that appears at the edges of the part, often in ejector pin locations or parting lines. It is usually a minor defect and can be easily trimmed off from the final product, but it could indicate insufficient pressure in the mold cavity. The best way to prevent flash is to increase injection pressure and nozzle temperature. Ventilation can also help if the injection mold is designed correctly.

Flashing

Flash is excess plastic that escapes the mold during the injection molding process. It can get out through ejector pin locations, the parting lines, or anywhere else that doesn’t properly seal. It can also occur because of improper clamping pressure or sprue bushing dimensions that are not appropriately adjusted for the application.

Sink marks are visual depressions or indentations that appear on the surface of a finished molded product. Varying cooling rates can cause them, mismatched wall thicknesses between sections, or several other factors that require quality control to identify and correct.

Professional mold manufacturers ensure the highest quality injection molded parts. It also ensures that a product is designed with optimal manufacturing efficiencies and optimized for the specific equipment used in production. This helps achieve the lowest unit costs without compromising quality or functionality. This is accomplished by analyzing the design and integrating it with a comprehensive injection molding process to deliver the quality and consistency your customers demand.

Part Ejection

Injection molding produces complex plastic components with high tensile strength. With proper design, these parts can meet or exceed the performance and durability of metal products. However, even the best injection-molded pieces can have issues that don’t necessarily stem from the manufacturing process.

For example, if the parts aren’t the right size or shape, they can cause problems for customers when they try to use them. Finding these issues through quality control early can help companies avoid situations that could significantly impact their business.

Quality control begins with comprehensive injection mold trials before production to prevent these issues. This testing ensures dimensional accuracy, uniform cooling channels, balanced filling, and accurate part ejection. Additionally, carefully polishing all the mold surfaces that come into contact with a molded part minimizes the risk of defects such as marks. Ejector pins – the “bouncers” of the injection molding world – can also leave scars, but experienced injection molders know how to position them to minimize this effect.

25.Is there a safety risk in the manufacturing process of plastic injection molds?

High temperatures, high-pressure hydraulic circuits, and hazardous fumes all pose a risk to operators, and the popularity of injection molding provides many opportunities for accidents. There are methods to prevent safety breaches, but they all involve education on how injection molding works and where the danger lies in the process.

26.How do plastic injection mold manufacturers respond to rising material prices?

Stubborn price inflation, supply chain woes and labor costs and shortages have been putting the squeeze on many manufacturers and aggressively chomping up their margins. For many, this may signal the beginning of a period of increasing pass-through costs leading to hiked product prices and service fees. The Consumer Price Index (CPI) climbed by an annualized 7.5% in January 2022—on the heels of a 7.0% increase in December—making it the highest in four decades. Meanwhile, many input costs for manufacturers have been rising by a much wider margin. West Texas Intermediate crude, for instance, spiked by 35% over the December 2021-January 2022 period. Soon after, on February 10, 2022, the aluminum prices hit an all-time high, rising about 25% over the previous three months alone.

Input cost pressures are not expected to ease soon. According to a January 2022 PwC Pulse Survey, 68% of manufacturers agree that inflation is likely to remain elevated at the end of 2022. To offset increasing input costs—of everything from raw materials to parts and components to energy—nearly three-quarters (73%) of industry leaders expect they’ll need to increase prices of their goods and services through 2022, presumably to protect both gross and profit margins.

Supply chain disruptions are likewise expected to persist. Fewer than half of US manufacturers (43%) expect supply chain disruptions to ease by the end of 2022, according to our survey. And supply chain challenges (in both availability of supplies and clogged logistics) are perceived to become a strong determinant of future growth. Most (58%) agree that improving supply chain resilience and reevaluating inflation-related pricing strategies (55%) are very important to their ability to grow in 2022. This compares to 41% of sector leaders in our October 2020 survey who said changing their supply chain footprint was very important to their company’s profitability over the next two years.

How can manufacturers regain control over their margins?

With manufacturers hit on multiple fronts, they’re looking well beyond the traditional cost-containment playbook to preserve margins. Pricing that perfectly aligns with cost of goods or just-in-time inventory management approaches seem like quaint and distant memories. Most industry leaders now realize that they will need to find ways to inject agility and resilience into their organizations. And fast. Sixty percent agree that increasing agility to better operate in a turbulent business environment will be important to their growth this year, our survey finds.

So what paths to resilience and agility are at their disposal?

Let’s explore where manufacturers should focus to preserve margins (as much as possible) during this stormy business environment.

Fixing the supply chain, link by link: While rising input costs grab the headlines, manufacturers are simultaneously struggling with a crisis of supply availability—from raw materials to parts and components sourced by Tier 1 and Tier 2 suppliers. Alleviating this crisis could mean making longer-term contracts and improving cost transparency with supplier partners. Some manufacturers have decided to take more aggressive actions with their suppliers to secure availability. Take chips, as one example. Some manufacturers (especially in the automotive sector) who source products requiring semiconductors are taking it upon themselves to secure purchase order contracts for chips on behalf of their suppliers. Such actions are aimed at both lowering input cost and easing product and materials availability issues.

Taking such action means forging much closer relationships with suppliers via increased data-sharing to improve supply chain transparency and better anticipate—or even predict—supply chain snarls. It also means improving supply chain productivity through warehouse and production automation and improving logistics, using predictive analytics empowered by artificial intelligence and cloud technologies.

Containing the impact of rising price inflation: As the prices of energy, raw materials and other commodities rise, manufacturers need to find ways to cushion the impact on costs of goods sold. Numerous levers can be pulled, such as reassessing all contracts. Which indexed contracts for commodities need to be reconsidered? Which contracts should be fixed-priced? Has every contract renewal been scrutinized for renegotiation? Is your trading strategy aligned with today’s price volatility? It could also mean being more aggressive in finding alternative suppliers that offer more attractive pricing, or suppliers that are closer to your operations in order to trim delivery costs.

Pricing: How much to pass through?

Because so much uncertainty surrounds the trajectory of rising input costs, manufacturers can be hard-pressed on whether or not to pass through these costs to customers by hiking product prices and service fees. If they feel they need to do so to protect—or at least control the shrinkage of—their margins, crucial questions arise. How great will those price increases be? How long will they likely stick? To what extent could higher prices prompt customer defection?

To get the right answers, procurement and product prices teams need to work much more closely. Some manufacturers clearly have more dynamic and agile cost structuring and pricing than others, based on numerous factors: For example, whether they’re B2B or B2C, the degree of complication and cost of the product, and the extent of repair and maintenance included in service contracts. Additionally, each manufacturer needs to determine to what extent costs have to rise before triggering a price increase. Some will be able to hold down cost increases of, say, 5% before they need to pass through price increases. For others, that threshold might be 10%—or even more. In any case, companies need to get a precise measurement of how input cost increases are impacting their P&L now, and do scenario planning for possible future impacts.

Addressing labor costs and availability: Even before the pandemic, manufacturers struggled with acquiring and retaining talent. As with other sectors, the pandemic—coupled with the Great Resignation—has exacerbated the challenge. The industry’s entrenched talent shortage shows no sign of abating, with about three in four (77%) manufacturers agreeing that hiring and retaining talent is very important to their ability to grow their business in 2022, according to our survey. Just 34% of sector leaders expect talent shortages to ease by the end of 2022, while over half (57%) expect to invest a lot in hiring and retaining talent in 2022. With wages rising and the job openings and hires gap widening, sector leaders can add labor costs to the suite of inflationary pressure.

However, while there seems that there’s little to do to contain these costs, companies can move to strengthen retention rates to avoid overtime and recruitment costs and expand automation strategies, particularly those that tackle repetitive tasks Stay close—and transparent—with your customers: As manufacturers get a clearer idea of how input costs are affecting their margins, they’ll get a clearer understanding of any price increase of their product and service that they may need to pass through to customers. While future cost swings are unpredictable, it’s nevertheless crucial to keep a transparent and open dialogue with customers to manage expectations and provide visibility. Any price increases ought to be explained—preferably well before they are made. You may also want to come up with ways to ameliorate the pain of such increases, perhaps by discounting service fees or spare-parts prices.


27.Do plastic injection mold manufacturers have international standards for mold manufacturing?

International trade policy impacts every mold builder, and policy shifts matter even more. Each decision potentially makes it easier or more difficult for a mold builder to export or to push back against unfair trade practices originating overseas. After a year of laying out a comprehensive, and very controversial, trade agenda, the Trump administration began to implement dramatic shifts in 2018. Our nation has plenty of policy irons in the fire, including unilateral tariffs on steel and aluminum imports, a new NAFTA and face-to-face negotiations with Beijing.

Here’s a quick rundown of some of the decisions that the government will need to make, along with some of the issues it needs to address this year. The U.S., Mexico, and Canada signed the NAFTA update, called USMCA, but the deal now faces scrutiny from the U.S. Congress to determine if they will approve it or not. Although the President spent the first half of his term governing as a deep-red conservative, his negotiators, led by U.S. Trade Representative Robert Lighthizer, fashioned this deal with the prospect of a divided Congress in mind. As a result, some of its more notable updates could help gain bipartisan support.

The USMCA includes an increase in the percentage of North American content an automobile must contain to qualify for duty-free status. This item is an improvement that will keep more automotive parts manufacturing in the trade zone. The deal also stipulates that 30 percent of cars must be made by workers who earn at least $16 an hour. That is a rule that will mean more automotive manufacturing in the U.S. and will simultaneously encourage the low-wage Mexican automotive industry to improve the pay of its manufacturing workforce.

Another rule prohibits the USMCA signatories from signing a bilateral trade deal with any non-market economies, which leads to the next outstanding issue in American trade politics: U.S./China negotiations. U.S./China Negotiations

The purpose of the aforementioned USMCA rule is to secure America’s economic backyard while the U.S. tries to reshape an increasingly lopsided trading relationship with the world’s second-largest individual economy. China’s economic growth can be described in exponential numbers, and explicitly so since 2000 when Washington granted the nation permanent normalized trade relations and assisted the nation joining the World Trade Organization.

The liberalization that China promised in return for this fiscal bonanza didn’t materialize, and a decline in American manufacturing employment correlates to the increasing Chinese trade deficit since that year. According to a recent report from the Economic Policy Institute, that deficit can be linked to 2.5 million lost manufacturing jobs from 2001 to 2017, which is simply a jaw-dropping figure. And in the plastics and rubber products industry alone, the deficit eliminated more than 78,000 jobs.

A combination of lax American trade enforcement and bald-faced Chinese mercantilism increased the U.S. deficit and caused major job loss. This outcome has made the significant tariffs the Trump administration erected very appropriate, although some exemptions, such as those granted to injection mold imports, were wisely applied.

As Washington and Beijing continue to deal, here are a few fundamental issues that U.S. negotiators should insist their counterparts in China address:

Dismal intellectual property protection for foreign firms and a habit of currency manipulation, which subsidizes the country’s export industries and levies a tax on competitive imports;

State-owned enterprises, some of which are actively seeking footholds in the American marketplace, particularly in railcar and bus manufacturing;

The complete absence of formal labor protections for its massive workforce; and, Nonexistent environmental regulations.

Another ongoing trade deal is one with the European Union, the now post-Brexit U.K. Still another is with Japan, as Tokyo’s economic growth model is export-based with a very lucrative automotive market that is notoriously closed, while Japanese automakers are fully integrated into the American marketplace. That market will take significant muscle to pry it open.

It will be an interesting year for our unsubtle President as he wrestles with the newly divided Congress, even more so now than when his party ran both chambers. The brisk pace at which he’s forcing a reckoning on trade policy may make for some interesting headlines in 2019.

Not only will it be important for moldmakers to stay ahead of them, but it’s also incumbent on shops to make their voices heard in these policy debates. Insert your priorities into the discussion by inviting your members of Congress or staff to visit your shops, so they can learn more about your value to the community and how policy decisions impact you.

28.Do plastic injection mold manufacturers require professional certification?

Certifications are important for mold makers in the job market because they demonstrate a level of professional competency and expertise that employers look for. They can provide assurance to employers that a mold maker has the necessary skills and knowledge to successfully complete projects.

29.Does the mold design of plastic injection mold manufacturers involve CAD technology?

Specially tailored packages of 3D computer-aided design software have been available to injection mold designers for at least a decade.

Today’s typical mold-design CAD package features programs or modules to build and view a full representation of the mold, which includes generating core and cavity from the part model, parting-line splits, optimization of parting surfaces, mold-base selection, and addition of shutoffs, cooling lines, runner systems, gates, slides, lifters, ejectors, columns, spacers, guides, nozzles, screws, and pins.

Mold-design software may also contain or link up with on-line libraries of standard mold components from companies such as D-M-E, Hasco, Futaba, and Progressive Components. These parts can then be imported directly into a 3D solid or surface program.

Mold CAD software suppliers have not only improved many of these mold-planning functions, but are bringing in a host of additional or enhanced capabilities, such as more graphic visualization tools, preliminary mold designs for “quick quoting,” rapid modeling of EDM electrodes for special part features, and the ability to create and manipulate holes, pockets, cavities, or side actions.


30.What information do plastic injection mold manufacturers need to provide for customized molds?

The part design: Mold manufacturers will need to consider the size, dimensionality, and complexity of the product.

Production quantity: How many parts you anticipate making is important. Molds can feature multiple cavities of basic products to produce many products at once. ...

Part material: The mold will need particular design features based on the chosen plastic or resin for the products.

31.What is the relationship between the production capacity and production speed of plastic injection mold manufacturers?

Production capacity is an essential metric for manufacturers. It informs their production planning, helps them give their customers more accurate lead times and forecasts cash flow.

What Is Production Capacity?

Production capacity refers to the largest amount of goods that can be manufactured in a production facility over a period of time. It’s used to show the potential highest level of goods that can be produced with the current machines, labor and resources.

Knowing production is critical for manufacturers when making long-term and short-term business decisions. It helps manufacturers with administrative and in-facility decisions and allows them to increase their production efficiency.

The importance of technology and equipment

Mold-and-die shops thrive on the latest technology in tooling, software, and machines. Process success often depends on using best-in-class solutions from the past as well as from the latest advances of today. New ways of using older technologies often depend on advances in enabling technologies. A case in point is the emergence of circle segment end mill technology for full five-axis profiling. Circle segment cutting tools now offered by any number of cutting tool suppliers had to wait until full five-axis machining technology and CAM programming from software providers like Mastercam and Open Mind Technologies were able to handle it.

LOGIQ4FEED is available in several cutting edge geometries. The T-Land insert is for general-purpose materials and a high positive geometry is for difficult-to-machine stainless steel and high-temperature alloys. The following geometries are available with reinforced corner radius in T-Land: HP (Hi Positive); T-Land RM; and HP RM (reinforced cutting edge) to relieve pressure from the smaller corner radius for smoother finish and more robust insert.

32.How can plastic injection mold manufacturers extend the lifespan of their molds?

Tool life is key to a company’s bottom line and profitability. With the design and building stages complete, it is time to set the mold in the press and develop a process. Here are key press settings and essential preventative maintenance steps to improve mold life.

Verify that you are using adequate tonnage for each mold. If an operator uses too little tonnage, the injection pressure can exceed the tonnage requirements and blow open the mold. If an operator uses excessive tonnage, the machine will apply excessive compression on parting lines, vent areas and mold components, damaging the tool.

To avoid these situations, use the following formula to determine the proper tonnage for each mold:

Cavity Area = Length x Width of mold face (in/2)

Parts Area (Pa) = Cavity Area × # of Cavities

Tonnage (T) = Parts Area × *(T) 3 tons/in2

(Note: thin-walled or high viscosity applications may require up to (T)5 tons/in2) Set up a low-pressure close (LPC) on the press to protect the mold. Set the high-pressure lock-up position no higher than 0.05 above the actual mold touch position. Also cycle the mold to reduce LPC pressure until the mold does not lock up. Pressure rises slowly, allowing just enough pressure for the mold to transition from low-pressure to high-pressure lock up. Also, set the mold close timer to 0.5 secs above the actual mold close time requirement. For example, if the actual mold close time is 0.76 secs, set the mold close timer at 1.26 seconds.

Limit core pressures and speeds to the application’s requirements. Keep in mind that pressure can limit speed, but speed does not affect pressure set points. Fire cores based on position and not time to prevent crash conditions. Core operation affects cycle speed. Closely monitor core operation to identify signs that components are setting or pulling erratically.

Clamp speeds are definite drivers of cycle time, but faster speeds are not better, as they can cause tool wear or damage. Monitor close fast speeds for signs of lunging that can cause mold drop and potential pin and component misalignment. Ensure the transition from close fast to close slow is smooth and that the close slow condition occurs just before component/pin match up. Ensure the transition between mold breakaway and mold open fast is also smooth, with the open fast segment occurring after all of the components have cleared the pins.

Incorrect set points can endanger mold life through over-stroking or improper part ejection that causes parts to close up between mold halves. Base forward positions on the required amount of separation to properly remove parts from the mold. Over-stroking causes excessive strain on ejector pins and lifters. Part extraction should never require bottoming out the ejector plate. To reduce stress on ejection components, ensure pressure set points only use the required amount.

Increased mold temperatures can adversely affect mold life, so limit mold temperatures to minimum requirements for acceptable part aesthetics. Also, ensure that mold half temperatures do not exceed a 20ºF variance between the stationary and movable halves. Temperatures above this scope cause improper heat soak conditions and poor tool mating conditions that damage the tool. Mark circuits and supply and return requirements clearly to prevent incorrect mold installation.

Always inspect, clean and grease molds in production environments a minimum of once per shift. Watch for signs of wear, such as galling, parting line wear, burrs and metal shavings. Develop a regular preventative maintenance schedule, keep mold service records and review repetitive service/repair events to establish preventative maintenance frequencies that will help reduce unplanned service events.

Verify that slide slots are greased and that slides are functioning properly. Watch for signs of detent failure and loose gibs. Verify that slide positions are correct as you exit the mold after every cleaning and inspection. Use rust preventative when a mold will not be used for more than 6 hours, and coat textured and polished areas thoroughly to prevent rust damage.

The difference between the success or failure of a company’s tooling approach hinges upon its setup, implementation, and maintenance procedures covered in this checklist.

33.How do injection mold manufacturers handle waste and recycle?

Many manufacturers adopt technology and methods that aim to reduce scrap produced during the injection molding process to increase the efficiency of the operation while also enhancing sustainability and conservation of the environment.

Strong partnerships with material suppliers and processors, as well as the use of various tested and sustainable materials for different applications and industries, has enabled Bennett Plastics to be a leader in injection molding of sustainable parts.

The scrap produced from the injection molding process can be recycled back into the manufacturing process. For manufacturing purposes, post-industrial scrap can be shred and fed back into the injection molding machine or the plastic melted into pellets for reuse.

At Bennett Plastics we aim to reduce scraps of the molding process by: Re-using the material scrap Recycling the waste into production Repurposing the bi-products


34.Is the design of plastic injection mold manufacturers protected by intellectual property rights?

The design and manufacture of a mould often requires great effort, skill and expenditure by a proprietor. As such, it is of great importance to a proprietor that their mould is protected so as to prevent competitors from copying it and gaining an unfair advantage. Fortunately, intellectual property laws in South Africa provide ample protection possibilities to a proprietor of a mould.

This article gives an overview of the types of intellectual property which could protect a mould.

Patent protection

A mould would qualify for patent protection if it is new, involves an inventive step and is useful in trade, industry or agriculture. The novel and inventive merit of the mould would be assessed with reference to the so-called “prior art”. The “prior art” includes all matter which has been made available to the public anywhere in the world, through written or oral description, use or in any other way. However, it is important to note that if a patent has been granted for a mould, the patent would not extend to an article which has been manufactured with the mould.

Design registration protection

A mould may also qualify for protection as a functional design registration provided the mould is new and not commonplace in the art in question. A functional design protects the pattern, shape or configuration of an article, having features which are necessitated by the function which the article is to perform. As is the case with the law of patents, if a functional design registration has been registered for a mould, the functional design registration would not extend to an article which has been manufactured with the mould.

Copyright protection

In terms of the Copyright Act, a mould qualifies as an artistic work. Copyright will subsist in the mould if the mould was made by a qualified person and if the mould is original. Here, the term “original” means that the author of the work (i.e. the person who makes or creates the mould) must expend enough skill and effort to give the mould a quality or character of its own. A “qualified person” includes a natural person who is a South African citizen or who is domiciled or resident in South Africa.

For copyright to remain in the mould, it is of the utmost importance that three-dimensional reproductions thereof should not be made available to the public.

Conclusion All of the above intellectual property rights may be used to protect a mould and various enforcement strategies may be used.

35.Are plastic injection mold manufacturers affected by international trade regulations?

Yes, plastic injection mold manufacturers can be affected by international trade regulations, as their business involves importing and exporting materials, equipment, and finished products.

Some common ways in which trade regulations can impact plastic injection mold manufacturers include:

1. Tariffs and duties: Governments may impose tariffs and duties on imported and exported goods, including materials and equipment used in the manufacturing process. This can increase the cost of production for plastic injection mold manufacturers.

2. Trade agreements: Trade agreements between countries can also affect plastic injection mold manufacturers. For instance, free trade agreements may eliminate or reduce tariffs and other trade barriers, making it easier and cheaper to import materials and export finished products.

3. Export controls: Certain countries may have restrictions on certain types of technology or equipment that can be exported, which can impact the production process for plastic injection mold manufacturers.

4. Intellectual property protection: International trade regulations often include provisions for protecting intellectual property rights, which is important for plastic injection

International trade policy impacts every mold builder, and policy shifts matter even more. Each decision potentially makes it easier or more difficult for a mold builder to export or to push back against unfair trade practices originating overseas.

The U.S., Mexico, and Canada signed the NAFTA update, called USMCA, but the deal now faces scrutiny from the U.S. Congress to determine if they will approve it or not.

The USMCA includes an increase in the percentage of North American content an automobile must contain to qualify for duty-free status. This item is an improvement that will keep more automotive parts manufacturing in the trade zone.

36.Can plastic injection mold manufacturers conduct mass production?

Mass production is what takes a garage invention and puts it on shelves around the world. It is the process by which products are replicated at scale. It allows you to turn a dream into a business and a passion into a successful product. Almost everything you see in a shop, hardware store, or online market is a product of mass production.

Mass production requires mass materials. In modern times, the material most at home creating large-scale production is and has long been plastics. Plastics provide an incredible array of benefits and advantages to your product. From price to flexibility, efficiency to durability, plastics are the clear choice for manufacturers across the globe.

Steps to mass producing your plastic product using injection molding

Step 1. Concept – Have a clear understanding of what your product is and what purpose it will serve. This stage requires you to perform your due diligence, ensuring that there is a market for your product and that you understand the risks and costs associated with creating a new product.

Step 2. Modeling – So You’ve thought of a fantastic new product. You even wrote a business plan. Now it’s time to create the design that will serve as a blueprint for your future product. A computer-assisted design, or CAD, is a three-dimensional model of your product that will allow you to finalize your design, spot problem areas, and begin the production process.

Step 3. Prototyping – The CAD is essential, but you’ll need to create some prototypes to be genuinely prepared for mass production. Bringing your design into the real world will allow you to check for structural stability, physical appearance, functionality, and a whole host of other things that a digital design can’t provide.

Step 4. Testing – Create a limited run of your product before launching into full-blown production. This will allow you to gauge the effectiveness of your creation further while giving you valuable feedback. Your initial production run lets you test key performance indicators while limiting risk in the long run.

Step 5. Mass Production – All of your hard work culminates in this. After testing, you’ll have a more accurate idea of the kind of production run you’ll need to meet your needs, as well as any assembly or finishing your product requires. At this point, you can be more confident in moving forward with your investment, as you’ve already seen how your product does in the real world.

How Rex Plastics can help you from prototype to mass production

Mass production can be a frightening experience. With a partner like Rex Plastics at your side, you can rest easy knowing that your project is in good hands. Rex Plastics’ decades of experience make us the trusted choice for all your plastic production needs. So if you have questions about mass production or plastic injection molding, don’t hesitate, drop us a line today.


37.Can plastic injection mold manufacturers handle various plastic materials in their manufacturing?

Yes, plastic injection mold manufacturers can typically handle various types of plastic materials in their manufacturing process.

Some common examples include:

1. Polypropylene (PP) - a versatile plastic often used for packaging, automotive parts, and consumer products.

2. Acrylonitrile Butadiene Styrene (ABS) - a durable and impact-resistant material commonly used for household appliances, electronics, and automotive parts.

3. Polyethylene (PE) - a lightweight and flexible plastic commonly used in packaging, pipes, and toys.

4. Polystyrene (PS) - a rigid and lightweight plastic often used in packaging, consumer goods, and insulation.

5. Polyvinyl Chloride (PVC) - a rigid plastic commonly used in construction, electrical cables, and medical devices.

6. Nylon (PA) - a strong and lightweight material used in a variety of applications such as automotive parts, sporting goods, and electronic components.

7. Polycarbonate (PC) - a high-strength and transparent plastic commonly used in electronics, automotive parts, and medical devices.

Plastic injection mold manufacturers have the expertise and equipment to work with different types of plastic materials, allowing them to create a wide range of products for various industries. They can also assist with material selection, ensuring that the best quality and most suitable plastic material is chosen for the specific application.

38.How does the cost of plastic injection mold manufacturers affect the price of the final product?

Being aware of all the factors that will affect the price of your end-product is very important, especially if you’re new to the world of plastic injection molding. Not only will this help your bottom line, but it will also allow you to work alongside your plastic molders and design a more cost-effective component.

There are many different variables that affect the cost of your finished product, and the most important ones are:

Choice of resin

One of the biggest factors that affect the price of the plastic injection molding process is the type of plastic resin used in manufacturing. The choice of resin will change the price based on color, compounding, additives, quality, and availability. For example, resins that contain abrasive compounds such as mineral, glass, or carbon require different and more expensive molds.

Complexity

The more intricate the component, the more difficult it is to design the manufacturing process, and the more expensive the end product will be. Some aspects of part complexity are the tolerances, the number of undercuts, as well as the surface finish of the part.

Size

The size of the required product also drives the price forward. Larger parts and components require larger, more expensive molds, as well as more material to manufacture, which leads to a higher molding price. Also, larger components can take longer to make, which also increases the costs.

Mold material

Molds are an essential cost consideration in plastic injection molding, and the material of the mold can significantly affect the price of the entire process. Short production runs usually implement less-expensive aluminum molds. However, long production runs require molds made from more durable and expensive materials that will retain their characteristics across several years.

Cavities

The higher the number of mold cavities – the higher the production costs. Fewer cavities require far less time and tooling work, which leads to reduced production costs. Expert molders can maximize cavitations to enhance productivity and lower costs even for the most intricate parts and components.

Mold base

The base of the mold is essentially a case used for holding all the components, inserts, and cavities of the mold. The price of the mold base depends on the type of steel and the size of the mold.

39.What is the role of plastic injection mold manufacturers in their manufacturing and global supply chain?

1. Design and Development: Plastic injection mold manufacturers work closely with their clients to design and develop custom molds that meet their specific product requirements.

2. Mold Production: These manufacturers are responsible for producing high-quality molds using state-of-the-art equipment and techniques.

3. Quality Control: Plastic injection mold manufacturers have stringent quality control processes in place to ensure that all molds meet the required standards.

4. Global Sourcing and Supply Chain Management: Many plastic injection mold manufacturers have a global presence and work with clients from different parts of the world. They are responsible for sourcing materials, managing logistics, and coordinating with suppliers to ensure a smooth and efficient supply chain.

5. Innovation and Cost Reduction: These manufacturers are constantly looking for ways to improve their processes, reduce costs, and increase efficiency. This could involve using new materials, adopting new technologies, or optimizing their production processes.

6. Timely Delivery: As part of the global supply chain, plastic injection mold manufacturers are responsible for delivering molds to their clients on time.

7. After-Sales Support: In case of any issues or concerns with the molds, plastic injection mold manufacturers provide after-sales support to address any problems and ensure customer satisfaction. This could involve repairs, replacements, or modifications to the molds.

40.How do plastic injection mold manufacturers control product delivery?

As an injection molding company, even though what we usually do is rapid tooling and small volume molding production for customers to do market testing, we deeply know that part quality is the most important thing to our customers, It is not difficult to make high-quality parts for one or two projects, but it’s not easy to maintain or keep all the parts with high quality for all the projects.

So how to achieve that? A standard quality control process must be executed sternly. Quality is essential regarding the injection molding our company requires for various products. They will judge our company based on whether the products and devices work properly.

First of all, we should make it clear what is “high quality” for injection molded plastic parts. In our opinion, it includes

1) Correct & consistent dimensions within required tolerances;

2) No burrs/flashes;

3) Consistent color;

4) Correct textures or glossiness;

5) low scrap rates;

6) stable package.

What we should do to quality control for an injection molding project?

DFM (Design for Manufacturing) analysis

Injection molding is a specialized process that uses molten material, such as ABS, PP, POM, Nylon, Polycarbonate, Acrylic, etc. that is then placed into a mold to create the part. The mold is filled under a certain pressure and then cooled so it can solidify. It will then be removed from the mold. The process seems very simple, but many issues like gate marks, silver marks, sink mark, short shots, and burrs will come out during the molding. Professional DFM analysis can point out most of these issues in advance, to give customers some suggestions to optimize the part design, so as to improve the molding feasibility.

Tooling engineers should work with the customers to understand their design goals.How our manufacturing analysis can improve the quality of injection-molded parts:

Identifies those uneven walls

Identifies features that need a sufficient draft

Mold flow analysis to check the short shot and welded lines issues.

Select gate location

Select the ejector pin location

Select qualified and certified tool steel material and plastic pellet suppliers

Tool steel is not just critical to the tool's life, but also to the part’s surface, if using fake material, the tool's life will be shortened due to the bad strength, part’s surfaces will also be not good because of the insufficient hardness.

41.What design software do plastic injection mold manufacturers need?

Design and engineering is essential to building a better and more cost-effective mold with shorter leadtimes. A variety of software is available to help overcome the daily challenges faced with data, quoting, designing and programming—including computer-aided design (CAD), computer-aided manufacturing (CAM) and data management software. CAM is used to generate machining programs corresponding to part designs; CAD is used for detailed engineering of 3-D models and/or 2-D drawings.


42.What experience and professional knowledge do top plastic injection mold manufacturers need to possess

1. Comprehensive Knowledge of Plastic Materials

2. Design and Engineering Expertise

3. Experience in Injection Molding Process

4. Quality Control and Assurance

5. Understanding of Industry Standards and Regulations

6. Experience in Tooling and Machining

7. Knowledge of Automation and Robotics

8. Strong Project Management Skills

9. Ability to Provide Technical Support

10. Industry Experience

43.What technological innovation and research and development capabilities do plastic injection mold manufacturers have

Plastic injection mold manufacturers are at the forefront of technological innovation and possess robust research and development capabilities. They continually advance mold design and production techniques, incorporating automation, 3D printing, and computer-aided design (CAD) to enhance precision and efficiency. Their R&D efforts focus on creating molds that are durable, precise, and adaptable to various industries, pushing the boundaries of material science, mold coatings, and sustainability practices. This innovation ensures that they can meet the evolving demands of modern manufacturing and produce high-quality, custom plastic parts.

44.Multi station and multi chamber mold design for plastic injection mold manufacturers

If you need to produce plastic parts, there’s a good chance you’ll end up using injection molding. Since this precise manufacturing process is a cost-effective way to produce medium and high volumes of identical plastic parts, it’s often a better choice than production methods like CNC machining or urethane casting.

What is multi-cavity injection molding?

Multi-cavity injection molding is a form of injection molding that involves molding two or more identical parts per cycle. Multi-cavity molds can contain anywhere between two and 164 cavities, and they typically increase in increments (2, 4, 8, 16, 24, 32, etc.). Stack molds — molds containing a mirror image of the tooling making the parts — are classified as multi-cavity molds because they ultimately produce identical parts. However, family molds — molds that produce multiple parts that are similar in size or appearance but not identical — cannot be classified as multi-cavity molds.

Companies use multi-cavity injection molds for many different products in various industries including consumer goods, medical, and automotive.

Product teams often start with a single-cavity mold to validate their design before shifting to a multi-cavity injection mold. Single-cavity molds are less expensive and quicker to produce. However, in some cases, it makes more sense to use a multi-cavity mold from the start. Manufacturing the same large volume of parts with a single-cavity mold rather than a multi-cavity mold means more cycles, more machine time, and higher costs. Multi-cavity molds will enable you to create more parts in less time and at a lower cost per part.

The pros and cons of multi-cavity injection molding

Multi-cavity injection molds use cycle times more efficiently, so you can produce more parts per hour. This increase in production efficiency makes it possible to fulfill high consumer demand faster. Despite the high initial costs associated with multi-cavity molds, they can also help you lower your cost per part and save money on high-volume production runs.

Different types of runner technologies are used when designing single-cavity and even multi-cavity molds. Cold runners are typically used in prototype tooling to reduce initial investment. However, this increases material waste and there is a cost involved in re-grinding the excess material back into the process or disposing of it. Hot-runner technologies are typically used in proven-out designs to reduce material waste per cycle. Most multi-cavity molds use such technologies.

However, multi-cavity injection molding also has its drawbacks, starting with the cost of creating the mold itself. Multi-cavity molds require more upfront investments than single-cavity molds because they take more material, energy, time, and labor to produce. If you have a limited budget or are planning to manufacture parts at lower volumes, using a single-cavity mold might be more practical.

The pros and cons of multi-cavity injection molding

Using a mold with multiple cavities as opposed to one offers several advantages. Multi-cavity injection molds use cycle times more efficiently, so you can produce more parts per hour. This increase in production efficiency makes it possible to fulfill high consumer demand faster. Despite the high initial costs associated with multi-cavity molds, they can also help you lower your cost per part and save money on high-volume production runs.


45.What are the capabilities of plastic injection mold manufacturers to manufacture large and small molds?

Plastic injection mold manufacturers have the capabilities to manufacture both large and small molds, offering versatility to accommodate a wide range of product sizes and shapes. They utilize advanced machining equipment, CNC technology, and expert craftsmanship to produce intricate, small molds with precision. Simultaneously, they employ larger-scale machinery and manufacturing processes to create molds for more substantial products. Their adaptability ensures they can meet the diverse needs of clients across various industries, producing molds that are tailored to specific size and design requirements

46.What are the advanced mold cooling technologies of plastic injection mold manufacturers?

1. Conformal Cooling Technology: This technology involves designing the cooling channels in the mold to follow the shape of the part being produced, allowing for more efficient and uniform cooling.

2. Baffle and Deflector Technology: This technology involves using baffles and deflectors within the cooling channels to control the flow of coolant and improve heat transfer.

3. Heat Pipe Cooling: Heat pipe technology involves using a hollow tube filled with coolant to transfer heat away from the mold.

4. Water and Air Cooled Inserts: These cooling inserts can be placed in specific areas of the mold to provide targeted cooling to critical areas of the part.

5. High Performance Cooling Circuits: These advanced cooling circuits use high pressure and high flow rates to quickly remove heat from the mold, resulting in faster cooling times and shorter cycle times.

6. Vacuum Assisted Cooling: This technology involves using a vacuum to cool the mold instead of relying solely on the cooling channels.

7. Heat Exchangers: These devices use a liquid or gas to transfer heat away from the mold and maintain a consistent temperature throughout the mold.

8. Thermal Pin Technology: This technology involves using heat conducting pins within the mold to rapidly remove heat from specific areas of the part.

9. In-Mold Temperature Sensors: These advanced sensors can be embedded within the mold to monitor temperature and provide real-time data to optimize cooling and prevent defects.

10. Simulation Technologies: Advanced mold cooling simulation software can be used to optimize the design of the cooling system and predict any potential cooling issues before production begins.

47.Mold Heat Flow Analysis of Plastic Injection Mold Manufacturers

Mold heat flow analysis is a critical capability of plastic injection mold manufacturers. It involves using advanced software and simulation tools to analyze and optimize the heat distribution within the mold during the injection molding process. This analysis helps in identifying potential issues such as hot spots or uneven cooling, allowing manufacturers to make design adjustments and select appropriate cooling strategies. By ensuring uniform and efficient heat flow, manufacturers can enhance the quality of molded products and reduce production cycle times, ultimately improving the overall performance and cost-effectiveness of the injection molding process.

48.What is the pricing strategy of plastic injection mold manufacturers for competitiveness?

Plastic injection mold manufacturers often employ a competitive pricing strategy that considers various factors. These include the complexity and size of the mold, the choice of materials, the required precision, production volume, and additional services like design and engineering support. Manufacturers aim to strike a balance between offering cost-effective solutions and maintaining quality and performance standards. This strategy allows them to compete effectively in the market while providing tailored pricing based on the unique needs of each project and customer.

49.What do plastic injection mold manufacturers have for traceable materials and components?

Plastic injection mold manufacturers prioritize traceability for materials and components used in the mold-making process. They typically maintain comprehensive records and documentation of the source, type, and quality of materials, such as steel, resins, and mold coatings. This traceability ensures that they can track the origin of components and raw materials, which is essential for quality control, compliance with industry standards, and addressing any issues that may arise during the production process. By having a traceable materials and components system in place, manufacturers can enhance product quality and quickly identify and resolve any supply chain or material-related concerns

50.Plastic injection mold manufacturers' procurement and management of raw materials

Plastic injection mold manufacturers typically have well-established processes for the procurement and management of raw materials.

Material Selection: Manufacturers carefully select the appropriate raw materials based on the specific requirements of the mold and the type of plastic components it will produce. Common materials include various grades of steel for mold cores and cavities, as well as plastic resins for prototype or test molds.

Supplier Evaluation: Manufacturers work with trusted suppliers and conduct thorough evaluations to ensure the quality, consistency, and reliability of the raw materials. This includes assessing supplier certifications and adherence to industry standards.

Quality Control: Quality control measures are in place to inspect and verify the quality of incoming materials. This may involve testing material properties, checking for defects, and ensuring the materials meet the required specifications.

Inventory Management: Manufacturers maintain an organized inventory of raw materials, ensuring that the necessary materials are readily available for the production of molds. Inventory management helps prevent delays and interruptions in the manufacturing process.

Traceability: Traceability systems are implemented to track the source and origin of raw materials. This is essential for quality control, compliance, and addressing any material-related issues.

Sustainability Considerations: Many manufacturers are increasingly mindful of sustainability and may opt for eco-friendly materials and practices in alignment with environmental standards and regulations.


51.Preventive maintenance plan for equipment by plastic injection mold manufacturers

First, the purpose: So that equipment can maintain the best performance status and extend the service life, to ensure the normal production.

Two. Scope of application: For mold maintenance and repair.

Three. Regular inspection, maintenance: Need to be repaired by the mold, the upper and lower mold staff for regular maintenance and inspection.

1. Daily routine inspection and maintenance:

1.1 Whether the mold in operation is in the normal state a. Whether there is low-voltage mode-locked protection; b. Activities such as guide column, mandrel, line wear and tear, lubrication is good? Requires at least 12 hours to add an oil, the special structure to increase the number of refueling. c. The mold of the fixed template of the screw and the clamping clamp is loose;

1.2 production of normal conditions: check whether the product defects and mold;

1.3 under the machine to conduct a comprehensive inspection of the mold and anti-rust treatment: wipe dry cavity, core, the top of the body and the location and other parts of the water and spray mold rust or smear butter.

1.4 under the machine after the mold to be placed in the designated location and make a record:

(1) mold status: intact or to be repaired. (2) when the mold when the rust treatment.

2. Quarterly check: Mainly on the placement of more than two months did not use the mold to clean up maintenance.

2.1 open the mold, check the internal anti-rust effect, there are abnormal circumstances, to be re-rust treatment. Long-term use of the mold to be coated with butter.

2.2 put it back in place and make a record.

Four. Maintenance Note:

1. Non-professional maintenance personnel or without professional maintenance personnel to allow, not self-mold repair.

2. The production process of a small fault, transfer personnel can be resolved according to the situation. Such as:

2.1 into the plastic mouth sticky mold: the application of copper needle at the feed mouth at the knock, can not be used steel and other hard objects beat the mold.

2.2 cavity slightly die marks, according to the cavity of the finish to select the polishing material.There are not used sandpaper and other polishing materials, generally dipped in diamonds with diamond brush or diamond paste, by the professional maintenance staff to complete.

2.3 product sticky mold: generally covered with hot plastic products and the top of the site, to be cooled after the top out. Do not damage the mold surface with fire.

3. Professional maintenance mold, not free to change the structure, need to change the structure subject to the consent of the quality engineering department before proceeding.

4. To ensure the quality of maintenance, select the appropriate equipment, materials, tools and methods to solve the problem, the fastest speed to complete.

52.What strict mold inspections and tests do plastic injection mold manufacturers have

Plastic injection mold manufacturers implement strict mold inspections and tests to ensure the quality and functionality of the molds they produce.

Visual Inspection: Comprehensive visual checks are conducted to identify any visible defects, surface irregularities, or imperfections in the mold components.

Dimensional Inspection: Precise measurements are taken to confirm that the mold components meet the specified tolerances and dimensions.

Material Inspection: The materials used in the mold, such as steel, are inspected to ensure they match the specified grades and meet quality standards.

Surface Finish Inspection: The surface finish of the mold is examined to ensure it aligns with the desired texture and appearance. Mold Functionality

Tests: Molds undergo functional tests to confirm that they can produce plastic parts as designed, with checks for issues like part ejection, cooling, and gate performance.

Heat Flow Analysis: Computational analysis may be conducted to assess heat flow within the mold during the injection process, helping to identify potential issues like hot spots and improve mold design.

Pressure Testing: Some molds are subjected to pressure tests to verify their capability to withstand the high pressures generated during injection molding.

Material Flow Analysis: Simulation tools are used to analyze how molten plastic material flows through the mold cavities, helping optimize gate and runner design for even filling.

Cycle Testing: Molds may undergo repeated molding cycles to assess their durability and ability to maintain quality over time.

Quality Documentation: Comprehensive documentation is maintained to record the results of inspections and tests, facilitating traceability and quality control.

53.How plastic injection mold manufacturers provide customer support and related training

Plastic injection mold manufacturers offer customer support through various channels, providing technical assistance, guidance, and addressing inquiries or concerns. They also provide related training, often in the form of on-site or remote sessions, to help clients understand mold operation, maintenance, and troubleshooting. This customer support and training ensure that clients can effectively utilize and maintain the molds, optimizing their performance and longevity.

54.How can plastic injection mold manufacturers achieve rapid equipment troubleshooting and repair?

Plastic injection mold manufacturers achieve rapid equipment troubleshooting and repair through a combination of factors, including having skilled and experienced technicians, well-maintained machinery, readily available spare parts, and efficient diagnostic tools. These elements enable quick identification of issues, timely repairs, and minimized downtime in the production process, ensuring optimal equipment performance and production efficiency.

55.How do plastic injection mold manufacturers position their customers and global markets?

Plastic injection mold manufacturers position themselves in the global market by focusing on several key strategies:

Customization: They tailor mold designs to meet the specific needs and preferences of their customers, offering personalized solutions for various industries and applications.

Quality Assurance: Emphasis is placed on producing high-quality molds that meet or exceed industry standards, ensuring reliability and performance.

Competitive Pricing: Manufacturers strive to offer competitive pricing without compromising on quality, making their products appealing to a broad range of customers.

Global Reach: Many manufacturers establish a global presence through international partnerships, distribution networks, and export capabilities to reach a diverse customer base.

Innovation: Continuous innovation and adoption of advanced technologies keep manufacturers at the forefront of the industry, enabling them to offer cutting-edge solutions.

Customer Support: They provide comprehensive customer support, technical assistance, and training, fostering strong relationships and loyalty.

Sustainability: A growing focus on sustainability and eco-friendly practices aligns with global market trends and regulatory requirements.


Tags: Plastic injection mold manufacturer
